Winnerwell Nomad PLUS Double View External Air L-sized Wood Burning Tent Stove Patented Design
With it’s unique patented design of External Air intake from outside the tent, Winnerwell Nomad PLUS Double View External Air L-sized Wood Burning Tent Stove brings a new standard of heating efficiency to portable wood burning stoves. Unlike the front door air intake, an inbuilt external air supply to the External Air intake stove ensures that there’s an unlimited flow of fresh combustion air, which eliminates cold drafts, prevents the stove from consuming the air in tent and the hot air it has created.
A typical stove can consume between 10 to 20 cubic meters of combustion air every hour and an average airtight 4-person tent has a volume of air around 30 to 40 cubic meters, so it’s obvious that a stove operating in an airtight and draught-proof tent could quickly consume up the Oxygen in the tent within 2.5 hours and thus present serious problems for the occupants.
The secondary combustion system helps burn off waste gases to produce more heat and reduce emissions.
Material: AISI304 Stainless Steel
Firebox Dimension: 435(L)mm x 250(W)mm x 250(H)mm / 17.1(L)in x 9.8(W)in x 9.8(H)in
Stowed Dimension: 600(L)mm x 315(W)mm x 325(H)mm / 23.6(L)in x 12.4(W)in x 12.8(H)in
Assembly Dimension: 600(L)mm x 650(W)mm x 2620(H)mm / 23.6(L)in x 25.6(W)in x 103.1(H)in
Pipe Diameter: 89mm / 3.5in
Spark Arrestor: 89(D)mmx316(H)mm / 3.5(D)inx12.4(H)in
Total Pipe Length: 2230mm / 87.8in
Net Weight: 17.1kg / 37.6lbs

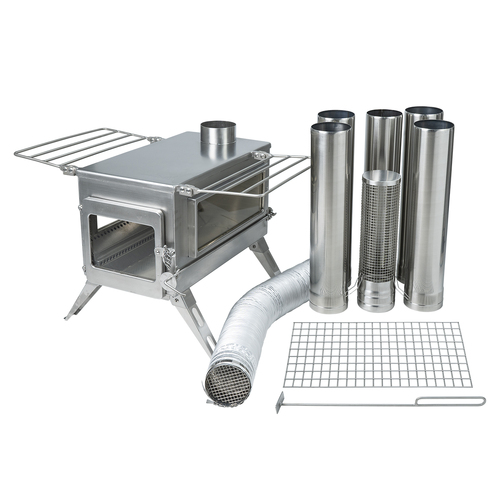

Include: 1 stove body, 5 sections of straight chimney pipe, 1 spark arrestor, 1 ash scraper and 1 grate, 1 External Air Intake Pipe and 1 Opener & Seal Set
A certain deformation will occur on the top surface of the stove. Water tank, oven, pot or other cookware may wobble a little due to uneven contact. Please note it will not affect the normal use of the stove or accessories.
After the first burning, stainless steel stove will begin to acquire a nice patina color. Please rest assured, this change in color is not corrosion and is normal.
Always remember to wear gloves when assembling to prevent injury.
